ANY.RUN Integration Guide

Overview​

The ANY.RUN integration allows your NINA workflows to connect with the ANY.RUN malware analysis service. This integration enables you to submit files for automated analysis, retrieve detailed reports, manage analysis tasks, and query threat intelligence data.

Status​

Currently, we support all Sandbox API operations and the complete Threat Intelligence API, including advanced IoC lookup and search capabilities.

Credential Configuration​

Before using the ANY.RUN integration in your workflows, you need to configure credentials for authentication. The NINA platform supports two authentication methods for ANY.RUN:

Authentication Methods​

The preferred authentication method using an API key from your ANY.RUN account:

FieldDescriptionExample
API KeyYour ANY.RUN API keya1b2c3d4e5f6g7h8i9j0...
Base URLANY.RUN API base URLhttps://api.any.run/v1

How to get your API Key:

  1. Log in to your ANY.RUN account
  2. Go to your profile settings
  3. Navigate to the API section
  4. Generate a new API key
  5. Copy the generated key

2. Basic Authentication​

Authentication using your ANY.RUN username and password:

FieldDescriptionExample
UsernameYour ANY.RUN username[email protected]
PasswordYour ANY.RUN passwordpassword
Base URLANY.RUN API base URLhttps://api.any.run/v1

Creating an ANY.RUN Credential​

  1. Navigate to the Credentials section in NINA

  2. Click Add New Credential

  3. Fill in the credential details:

    • Name: A descriptive name (e.g., "ANY.RUN Production")
    • Description: Optional details about the credential's purpose
    • Integration Service: Select "ANY.RUN"
    • Auth Type: Choose "API Token" or "Basic Auth"
    • Fill in the authentication fields based on your selected auth type

  4. Click Test Connection to verify credentials

  5. Click Save to store the credential

Supported Resources and Operations​

The ANY.RUN integration supports the following resources and operations:

Analysis​

OperationDescription
Submit AnalysisSubmits a file or URL for malware analysis
Get HistoryRetrieves analysis history
Get ReportRetrieves a detailed analysis report
Add TimeAdds 60 seconds to a running task
Stop TaskStops a running task
Delete TaskDeletes a task
Get Task StatusGets the status of a task

Intelligence​

OperationDescription
Get IoC DetailsRetrieves detailed information about an indicator of compromise
Search IoCsSearch for indicators of compromise
Search Threat IntelligenceSearches for threat intelligence data

Environment​

OperationDescription
Get EnvironmentsGets information about available environment configurations

User​

OperationDescription
Get LimitsGets information about user's usage limits
Get PresetsGets user's saved presets

Parameter Merging and Templating​

The ANY.RUN integration takes full advantage of NINA's parameter merging and templating capabilities:

Parameter Sources (in order of precedence)​

  1. Node Parameters: Parameters configured directly in the ANY.RUN Integration Node
  2. Extracted Parameters: Parameters automatically extracted from the input data
  3. Input Data: The complete input data from upstream nodes

When an ANY.RUN Integration Node executes:

  • It combines parameters from all sources
  • Node parameters take precedence over extracted parameters
  • Template variables within parameters are processed (using {{variable_name}} syntax)
  • The combined parameters are used to execute the ANY.RUN operation

Example: Submitting a File for Analysis​

Basic File Submission​

Below is an example of submitting a file for malware analysis:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "submitAnalysis",
  "parameters": {
    "obj_type": "file",
    "file": {
      "name": "suspicious_file.exe",
      "data": "BASE64_ENCODED_FILE_CONTENT_HERE"
    },
    "env_os": "windows",
    "env_bitness": 64,
    "env_version": "10",
    "env_type": "complete",
    "opt_network_connect": true,
    "opt_timeout": 60,
    "opt_privacy_type": "bylink"
  }
}

Submitting a URL for Analysis​

You can also submit a URL for analysis:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "submitAnalysis",
  "parameters": {
    "obj_type": "url",
    "obj_url": "https://suspicious-website.example.com",
    "env_os": "windows",
    "env_bitness": 64,
    "env_version": "10",
    "env_type": "complete",
    "opt_network_connect": true,
    "opt_timeout": 60,
    "opt_privacy_type": "bylink"
  }
}

Downloading and Analyzing a File from URL​

Submit a URL for the service to download and analyze the file:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "submitAnalysis",
  "parameters": {
    "obj_type": "download",
    "obj_url": "https://example.com/suspicious-file.exe",
    "env_os": "windows",
    "env_bitness": 64,
    "env_version": "10",
    "env_type": "complete",
    "opt_network_connect": true,
    "opt_timeout": 120,
    "opt_privacy_type": "bylink"
  }
}

Rerunning an Existing Task​

Rerun a previous analysis task with the same parameters:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "submitAnalysis",
  "parameters": {
    "obj_type": "rerun",
    "task_rerun_uuid": "01234567-89ab-cdef-0123-456789abcdef",
    "opt_privacy_type": "bylink"
  }
}

File Submission with Template Variables​

You can use template variables to dynamically insert values from input data:

Input Data from Previous Node:​

{
  "malware": {
    "filename": "suspicious_payload.exe",
    "filedata": "BASE64_ENCODED_CONTENT_HERE",
    "analysis_timeout": 120
  },
  "analysis_type": "complete"
}

Node Configuration with Template Variables:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "submitAnalysis",
  "parameters": {
    "obj_type": "file",
    "file": {
      "name": "{{malware.filename}}",
      "data": "{{malware.filedata}}"
    },
    "env_os": "windows",
    "env_bitness": 64,
    "env_version": "10",
    "env_type": "{{analysis_type}}",
    "opt_network_connect": true,
    "opt_timeout": "{{malware.analysis_timeout}}",
    "opt_privacy_type": "bylink"
  }
}

Example: Retrieving Analysis Reports​

Getting Analysis History​

Retrieve a list of previous analysis tasks:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "getHistory",
  "parameters": {
    "limit": 10,
    "offset": 0,
    "additionalFields": {
      "dateFrom": "2023-05-01",
      "dateTo": "2023-05-31",
      "verdicts": ["malicious", "suspicious"]
    }
  }
}

Getting a Detailed Analysis Report​

Retrieve a comprehensive report for a specific task:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "getReport",
  "parameters": {
    "taskId": "01234567-89ab-cdef-0123-456789abcdef"
  }
}

Getting Task Status​

Monitor the status of a running analysis task:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "getTaskStatus",
  "parameters": {
    "taskId": "01234567-89ab-cdef-0123-456789abcdef"
  }
}

Example: Task Management Operations​

Adding Time to a Running Task​

Add 60 seconds of execution time to an active analysis:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "addTime",
  "parameters": {
    "taskId": "01234567-89ab-cdef-0123-456789abcdef"
  }
}

Stopping a Task​

Stop a running analysis task:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "stopTask",
  "parameters": {
    "taskId": "01234567-89ab-cdef-0123-456789abcdef"
  }
}

Deleting a Task​

Delete an analysis task:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "analysis",
  "operation": "deleteTask",
  "parameters": {
    "taskId": "01234567-89ab-cdef-0123-456789abcdef"
  }
}

Example: Threat Intelligence Operations​

Searching Threat Intelligence​

Search for threat intelligence data based on various criteria:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "intel",
  "operation": "searchThreatIntelligence",
  "parameters": {
    "query": "Emotet",
    "startDate": "2023-01-01",
    "endDate": "2023-12-31",
    "threatLevel": "malicious",
    "taskType": "file"
  }
}

Advanced Threat Intelligence Query​

For more targeted searches:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "intel",
  "operation": "searchThreatIntelligence",
  "parameters": {
    "query": "Emotet AND Trickbot",
    "sha256": "e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855",
    "threatName": "Emotet",
    "threatLevel": "malicious"
  }
}

Getting IoC Details​

Retrieve detailed information about a specific indicator of compromise:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "intel",
  "operation": "getIoCDetails",
  "parameters": {
    "iocValue": "e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855",
    "type": "hash"
  }
}

Searching for IoCs​

Search for indicators of compromise with filtering options:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "intel",
  "operation": "searchIoCs",
  "parameters": {
    "query": "malware.exe",
    "limit": 20,
    "filter": {
      "type": "hash",
      "maliciousOnly": true
    }
  }
}

IP Address IoC Lookup:​

{
  "integration_service": "anyrun",
  "resource": "intel",
  "operation": "getIoCDetails",
  "parameters": {
    "iocValue": "192.168.1.100",
    "type": "ip"
  }
}

Domain IoC Lookup:​

{
  "integration_service": "anyrun",
  "resource": "intel",
  "operation": "getIoCDetails",
  "parameters": {
    "iocValue": "suspicious-domain.com",
    "type": "domain"
  }
}

Example: Environment and User Operations​

Getting Available Environments​

Retrieve information about the available analysis environments:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "environment",
  "operation": "getEnvironments",
  "parameters": {}
}

Getting User Limits​

Retrieve information about your account usage limits:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "user",
  "operation": "getLimits",
  "parameters": {}
}

Getting User Presets​

Retrieve your saved analysis presets:

Node Configuration:​

{
  "integration_service": "anyrun",
  "resource": "user",
  "operation": "getPresets",
  "parameters": {}
}

Integration in Workflow Context​

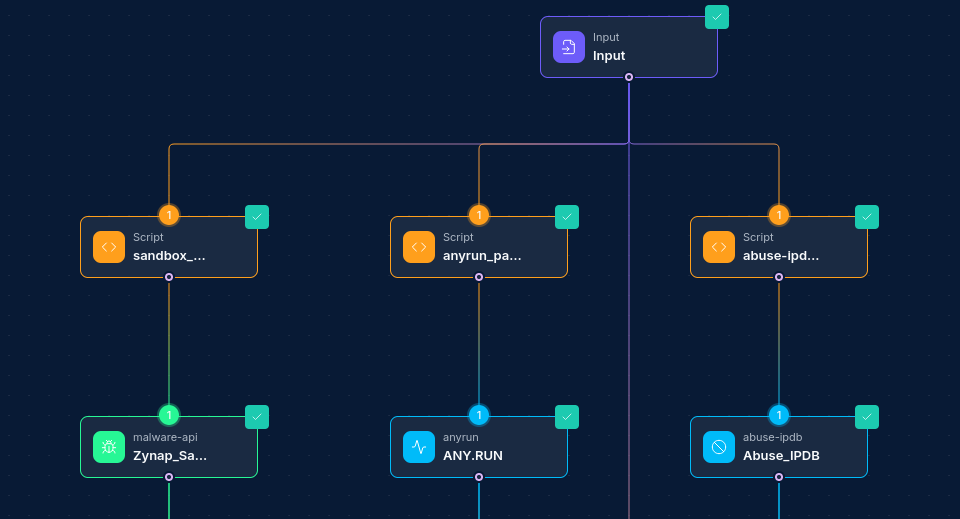

The ANY.RUN integration is particularly powerful when combined with other nodes in a workflow:

workflow showing ANY.RUN integration nodes connected with other node types

Common Workflow Patterns:​

  1. Email Attachment Analysis:

    • Email Integration Node → Script Node (extract attachment) → ANY.RUN Integration Node (analysis) → If/Else Node (check verdict) → Slack/Jira Node (notification)

  2. URL Analysis Pipeline:

    • Webhook Node (receive URL) → ANY.RUN Integration Node (URL analysis) → Script Node (process results) → Report Node (generate report)

  3. Batch File Analysis:

    • S3/Storage Node (retrieve files) → Script Node (prepare batch) → ANY.RUN Integration Node (analysis) → Database Node (store results)

  4. Continuous Threat Intelligence:

    • Schedule Node → ANY.RUN Integration Node (search intelligence) → Script Node (filter/enrich) → Threat Intel Platform Node

Troubleshooting​

IssueResolution
Authentication failuresVerify your credential configuration: check API key/username/password and ensure they are current. API keys may expire or be revoked.
"Task not found" errorsVerify the taskId is correct and that you have permission to access the task. Tasks may be deleted after a certain retention period.
Task submission failuresCheck file size limits (typically 100MB). Ensure the file format is supported. Verify your account has sufficient analysis credits remaining.
Analysis timeoutsThe default timeout is 60 seconds. For complex malware, increase the opt_timeout parameter (max 660 seconds).
Rate limitingIf you hit rate limits, implement delays between operations or reduce frequency.
Parameter validation errorsCheck the environment parameters match the supported values (e.g., env_os must be "windows" or "linux", env_bitness must be 32 or 64).
Task stuck in queueDuring high demand periods, tasks may wait in a queue. Use the getTaskStatus operation to monitor progress.

Best Practices​

  1. Use API Token Authentication: API token authentication is more secure than basic authentication and should be preferred.

  2. Optimize Analysis Parameters: Choose the appropriate environment parameters based on the type of file or URL being analyzed.

  3. Leverage Template Variables: Use {{variable_name}} syntax to dynamically insert values from input data.

  4. Consider Privacy Settings: The opt_privacy_type parameter controls who can access the analysis. Use "bylink" or more restrictive options for sensitive files.

  5. Monitor Task Status: For long-running analyses, use the getTaskStatus operation to monitor progress rather than repeatedly fetching the report.

  6. Handle Task IDs Carefully: Store task IDs returned from submissions as they're needed for all other operations.

  7. Process Reports Thoroughly: Analysis reports contain extensive data. Use Script Nodes to extract and process the most relevant information.

  8. Implement Error Handling: Add error handling for network issues, rate limiting, and other API errors.

  9. Consider Retention Policies: ANY.RUN may delete tasks after a certain period. If long-term storage is needed, save reports in your own storage.

  10. Respect API Limitations: Monitor your API usage and respect rate limits to avoid service disruptions.
