Trigger Node Guide

Overview

The Trigger Node serves as the entry point for NINA workflows that are initiated by external events. Unlike other nodes that process data sequentially, Trigger Nodes wait for external events (such as webhooks) to start workflow execution and provide initial data to downstream nodes.

Use Cases

• Receiving security alerts from external monitoring systems
• Processing webhook notifications from security platforms
• Automated response to incident reports
• Starting workflows based on external API events
• Real-time threat intelligence processing
• Automated vulnerability management workflows
• Incident response automation
• Threat hunting automation

Creating a Trigger Node

Basic Setup

1. Drag a Trigger Node from the node palette onto your workflow canvas
2. Configure the trigger type (currently supports webhooks)
3. Set up the trigger configuration and authentication
4. Connect the node to downstream nodes for processing

Trigger Types

Trigger Nodes currently support webhook triggers, with support for additional trigger types planned:

1. Webhook Triggers

Webhook triggers listen for HTTP requests from external systems and use the request payload to start workflow execution:

• Webhook URL: A unique URL endpoint that external systems can call
• Authentication: Optional webhook secret for request verification
• Request Body: JSON payload from the external system becomes the trigger data
• Headers: Custom headers that can be processed as part of the trigger data

Configuration Options

Node Properties

Property	Description
Name	A descriptive name for the node
Trigger Type	The type of trigger mechanism (webhook, etc.)
Trigger ID	Reference to a configured trigger (optional)
Output Type	The format of output data (typically "json")
Trigger Body	JSON payload received from the trigger event

Webhook Configuration

For webhook triggers, the following properties are available:

Property	Description
Webhook URL	The endpoint URL where external systems send requests
Webhook Secret	Optional secret for request authentication and verification
Method	HTTP method accepted (typically POST)
Content Type	Expected content type (typically application/json)
Headers	Custom headers to process from incoming requests

How Trigger Nodes Work

Workflow Initiation

When a Trigger Node receives an external event:

1. Event Reception: The trigger receives data from an external system (e.g., webhook request)
2. Data Processing: The incoming payload is processed and validated
3. Workflow Start: A new workflow execution is initiated with the trigger data
4. Data Propagation: The trigger payload becomes available to downstream nodes
5. Response: The trigger responds to the external system (if applicable)

Data Output Format

Trigger Nodes output data in a standardized format:

{
  "message": "workflow trigger successful",
  "request_body": {
    // Original trigger payload data
    "alert_id": "12345",
    "severity": "high",
    "source": "security_platform"
  }
}

Automatic Execution

Unlike other node types that require manual workflow execution:

• Trigger Nodes automatically start workflow execution when events are received
• No manual intervention is required once the trigger is configured and active
• Multiple workflow executions can be triggered simultaneously from different events

Trigger Management

Creating Triggers

Triggers must be properly set up before they can receive external events:

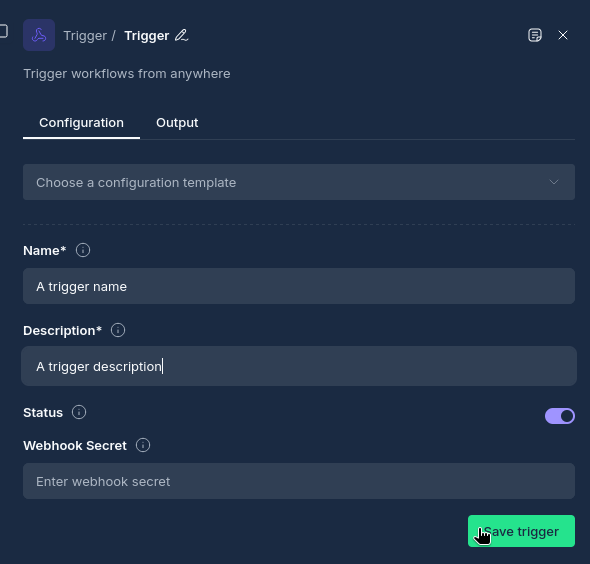

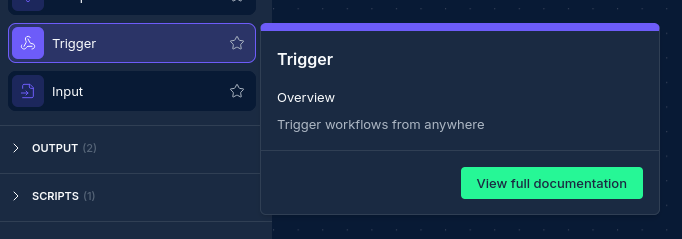

1. Drag a trigger node from the palette onto the workflow canvas
2. Configure the node with a descriptive name and description
3. Click the "Save trigger" button to initialize the trigger

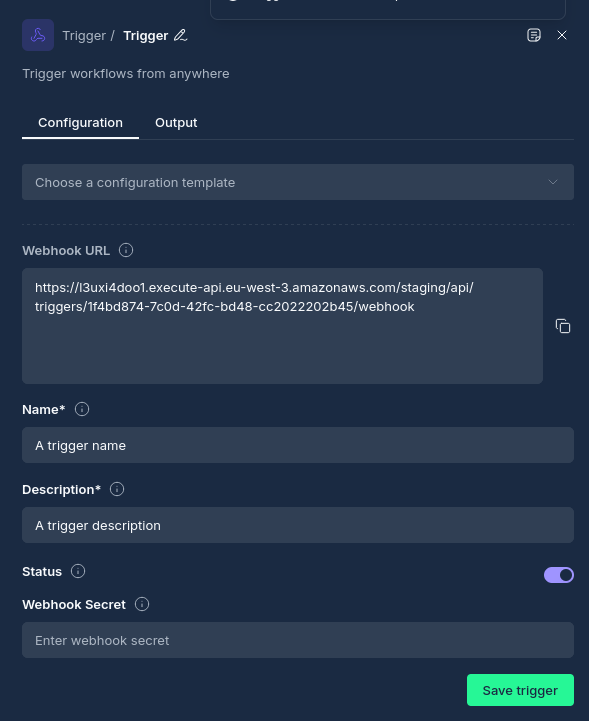

4. Once saved, the trigger node's configuration will display the webhook URL that external systems can use

Trigger Status

Triggers have two main states:

• Active: The trigger is listening for events and will start workflow executions
• Inactive: The trigger is disabled and will not process incoming events

Security Considerations

• Webhook Secrets: Use webhook secrets to verify request authenticity
• URL Security: Webhook URLs are unique and should be kept confidential
• Rate Limiting: Consider implementing rate limiting for high-frequency triggers
• Input Validation: Validate incoming trigger data to prevent security issues

Best Practices

• Descriptive Naming: Use clear names that indicate the trigger's purpose and source
• Error Handling: Add Script Nodes after Trigger Nodes to handle malformed or unexpected data
• Data Validation: Validate trigger payload structure before processing
• Monitoring: Monitor trigger activity to ensure proper operation
• Documentation: Document expected trigger payload formats for external integrators
• Testing: Test trigger functionality with sample payloads before production use

Example Configurations

Example 1: Security Alert Webhook

Trigger Configuration:

• Name: "Security Platform Alerts"
• Type: "webhook"
• Webhook Secret: [your-webhook-secret]
• Expected Payload:

  {
    "alert_id": "SEC-001",
    "severity": "high",
    "alert_type": "malware_detected",
    "affected_host": "server-01.example.com",
    "timestamp": "2024-04-24T10:30:00Z"
  }

Node Configuration:

• Output Type: "json"
• Connected to downstream Script Node for alert processing

Example 2: Vulnerability Notification

Trigger Configuration:

• Name: "Vulnerability Scanner Alerts"
• Type: "webhook"
• Expected Payload:

  {
    "scan_id": "VS-12345",
    "target": "app.example.com",
    "vulnerabilities": [
      {
        "cve": "CVE-2024-1234",
        "severity": "critical",
        "affected_component": "web_server"
      }
    ]
  }

Node Configuration:

• Output Type: "json"
• Connected to Integration Node for ticket creation in Jira

Integration Examples

External System Integration

Trigger Nodes can receive data from various external systems:

Security Information and Event Management (SIEM)

curl -X POST https://NINA.example.com/triggers/webhook/{trigger-id} \
  -H "Content-Type: application/json" \
  -H "X-Webhook-Secret: your-secret" \
  -d '{
    "event_type": "security_incident",
    "incident_id": "INC-001",
    "severity": "high"
  }'

Threat Intelligence Platforms

curl -X POST https://NINA.example.com/triggers/webhook/{trigger-id} \
  -H "Content-Type: application/json" \
  -d '{
    "indicator": "malicious.example.com",
    "indicator_type": "domain",
    "threat_level": "high",
    "source": "threat_intel_feed"
  }'

Troubleshooting

Issue	Resolution
Webhook not receiving requests	Verify the webhook URL is correct and accessible
Authentication failures	Check webhook secret configuration
Malformed payload errors	Validate incoming JSON structure and format
Workflow not starting	Ensure trigger is active and properly connected to downstream nodes
Rate limiting issues	Implement request throttling or increase limits
Timeout errors	Optimize downstream node processing for faster execution

Advanced Usage

Dynamic Trigger Configuration

Trigger Nodes can be configured to handle different types of payloads:

1. Conditional Processing: Use IF Nodes after Trigger Nodes to route based on trigger data
2. Data Transformation: Use Script Nodes to normalize data from different sources
3. Multi-Source Triggers: Configure different triggers for different data sources

Monitoring and Alerting

Monitor trigger activity and workflow execution:

• Track trigger event frequency and success rates
• Set up alerts for failed workflow executions
• Monitor payload validation errors
• Track downstream node execution performance

API Integration

Trigger Nodes can be integrated programmatically:

Webhook URL Format

https://your-NINA-instance.com/triggers/webhook/{trigger-id}

Authentication Headers

X-Webhook-Secret: your-configured-secret

Response Codes

• 200: Webhook received and workflow started successfully
• 400: Invalid payload or missing required fields
• 401: Authentication failed
• 500: Internal server error during workflow initiation

Next Steps

After configuring your Trigger Node, consider connecting it to:

• Script Nodes: To validate and transform incoming trigger data
• Integration Nodes: To enrich data from external sources
• Operation Nodes: To perform automated security operations
• IF Nodes: To create conditional workflows based on trigger data
• Output Nodes: To save trigger events and workflow results
